Description

Upgrade your lower short control arm suspension to an adjustable Enduro LCG Long Arm Suspension System with the TeraFlex LJ LWB: Lower LCG Long Arm & Bracket Upgrade Kit. Enduro LCG also Requires adjustable Rear Upper Short Control Arm Pair (TJ: # 1614800). Provides complete alignment adjustability and dependability for maximum performance on LJ Wrangler Unlimited models with 3-5 Inch Lifts.

CAD-engineered TeraFlex TJ: (Pro) LCG (4-Link) Long Arm Frame Brackets and triangulated Rear Upper Pro LCG 4-Link Long Arm Axle Truss (Not Included) are designed for maximum strength. The 1/4 Inch-thick steel brackets are CNC laser cut and precision bent for accurate fitment.

Frame Brackets locate using the factory belly pan skid plate bolt holes then stitch welded. These are the same components found in our high-end Enduro

LCG and/or Pro LCG Long Arm Suspension Systems.
By streamlining the frame-end mounting points, we were able to incorporate both front and rear mounts in the Lower LCG Long Arm Frame Brackets thus simplifying installation while maintaining a factory appearance.

Add our adjustable Rear Upper Short Control Arm Pair (TJ: # 1614800) for a complete Enduro LCG Long Arm Suspension System.

Or combine this kit with the Front Upper Pro LCG Long Arm & Bracket Upgrade Kit (TJ: # 1443470) and triangulated Rear Upper Pro LCG 4-Link Long Arm & Bracket Upgrade Kit (TJ SWB: # 1444870) (LJ LWB: # 1444880) to step up to our full Pro LCG Long Arm Suspension System.

Can be added to an existing suspension lift.

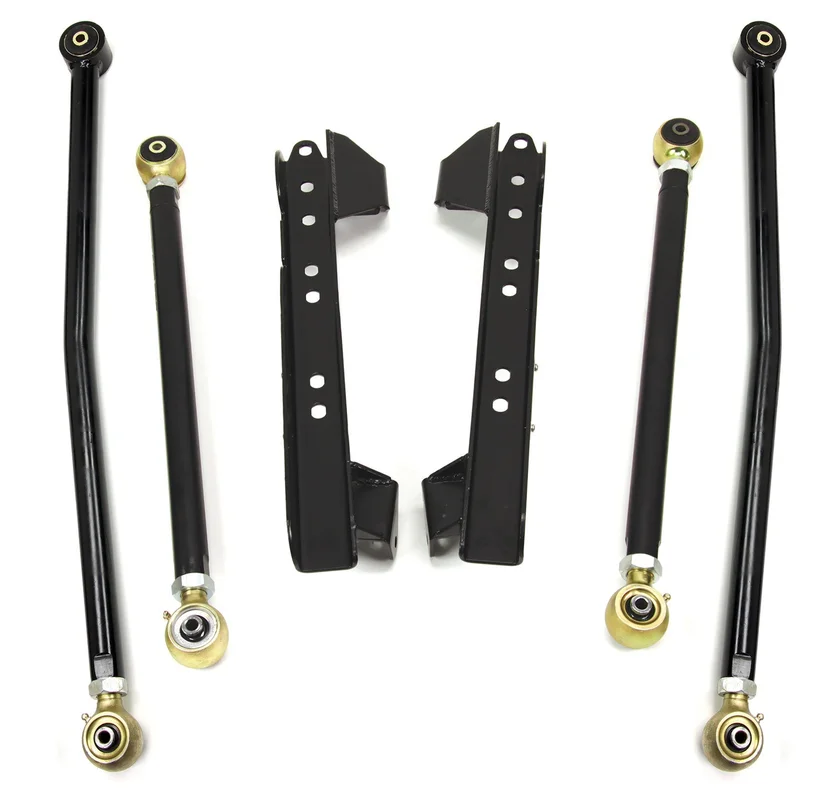

Includes:

• LCG Long Arm Pair – Lower (Front or SWB Rear) (# 1447702):
• Arm – Lower (Front or Rear / Left or Right) (# 1978226) x 2
• LCG Long Arm Pair – Rear Lower (# 1447704):
• Arm – Rear Lower Left (# 1644781)
• Arm – Rear Lower Right (# 1644782)
• LCG Long Arm Frame Bracket Kit – Lower (# 1447701):
• Bracket – Lower Left (Front/Rear)
• Bracket – Lower Right (Front/Rear)
• All necessary hardware

Fitment Vehicle(s):

• LJ Wrangler Unlimited (long wheelbase)

Specs:

• Lift Height: 3-5 Inch

Control Arm Specs:

• TJ: LCG Long Arm Pair – Lower (Front or SWB Rear) (# 1447702):
• Tube Diameter & Wall: 1.75 Inch x 0.25 Inch
• Factory Length: 15-3/4 Inch
• Min. Length: 31-9/16 Inch
• Max. Length: 36-3/16 Inch
• Bolt – Both: 9/16 Inch (14mm)
• Joint – Axle: 4116260
• Joint – Frame: 4520011
• LJ LWB: LCG Long Arm Pair – Rear Lower (# 1447704):
• Tube Diameter & Wall: 1.75 Inch x 0.25 Inch
• Factory Length: 15-3/4 Inch
• Min. Length: 41-11/16 Inch
• Max. Length: 44-1/16 Inch
• Bolt – Both: 9/16 Inch (14mm)
• Joint – Axle: 4116260
• Joint – Frame: 4520011

This Part Fits:

Year	Make	Model	Submodel	Notes
1997	Jeep	Wrangler	Sahara
1998	Jeep	Wrangler	Sahara
1999	Jeep	Wrangler	Sahara
2000	Jeep	Wrangler	Sahara
2001	Jeep	Wrangler	Sahara
2002	Jeep	Wrangler	Sahara
2003	Jeep	Wrangler	Sahara
2004	Jeep	Wrangler	Sahara
1997	Jeep	Wrangler	SE
1998	Jeep	Wrangler	SE
1999	Jeep	Wrangler	SE
2000	Jeep	Wrangler	SE
2001	Jeep	Wrangler	SE
2002	Jeep	Wrangler	SE
2003	Jeep	Wrangler	SE
2004	Jeep	Wrangler	SE
2005	Jeep	Wrangler	SE
2006	Jeep	Wrangler	SE
1997	Jeep	Wrangler	Sport
1998	Jeep	Wrangler	Sport
1999	Jeep	Wrangler	Sport
2000	Jeep	Wrangler	Sport
2001	Jeep	Wrangler	Sport
2002	Jeep	Wrangler	Sport
2003	Jeep	Wrangler	Sport
2004	Jeep	Wrangler	Sport
2005	Jeep	Wrangler	Sport
2006	Jeep	Wrangler	Sport
2002	Jeep	Wrangler	X
2003	Jeep	Wrangler	X
2004	Jeep	Wrangler	X
2005	Jeep	Wrangler	X
2006	Jeep	Wrangler	X
2007	Jeep	Wrangler	X
2008	Jeep	Wrangler	X
2009	Jeep	Wrangler	X
2010	Jeep	Wrangler	X
2003	Jeep	Wrangler	Rubicon
2004	Jeep	Wrangler	Rubicon
2005	Jeep	Wrangler	Rubicon
2006	Jeep	Wrangler	Rubicon
2007	Jeep	Wrangler	Rubicon
2008	Jeep	Wrangler	Rubicon
2009	Jeep	Wrangler	Rubicon
2010	Jeep	Wrangler	Rubicon
2004	Jeep	Wrangler	Unlimited
2005	Jeep	Wrangler	Unlimited
2006	Jeep	Wrangler	Unlimited
2005	Jeep	Wrangler	Unlimited Rubicon
2006	Jeep	Wrangler	Unlimited Rubicon
2007	Jeep	Wrangler	Unlimited Rubicon
2008	Jeep	Wrangler	Unlimited Rubicon
2009	Jeep	Wrangler	Unlimited Rubicon
2010	Jeep	Wrangler	Unlimited Rubicon
2006	Jeep	Wrangler	65th Anniversary Edition
2007	Jeep	Wrangler	Sahara
2008	Jeep	Wrangler	Sahara
2009	Jeep	Wrangler	Sahara
2010	Jeep	Wrangler	Sahara
2007	Jeep	Wrangler	Unlimited Sahara
2008	Jeep	Wrangler	Unlimited Sahara
2009	Jeep	Wrangler	Unlimited Sahara
2010	Jeep	Wrangler	Unlimited Sahara
2007	Jeep	Wrangler	Unlimited X
2008	Jeep	Wrangler	Unlimited X
2009	Jeep	Wrangler	Unlimited X
2010	Jeep	Wrangler	Unlimited X
2010	Jeep	Wrangler	Sport
2010	Jeep	Wrangler	Unlimited Sport
