Description

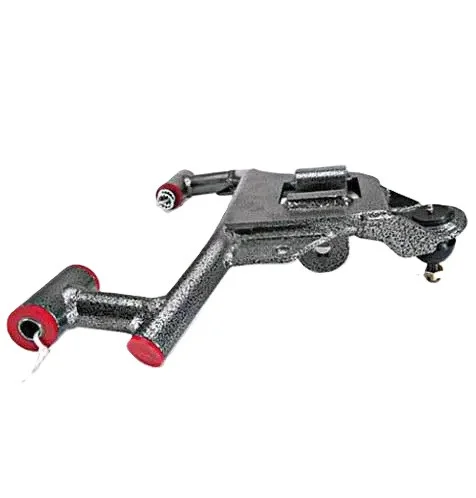

3 Inch Lowering Control Arm (Driver Side)

Driver Side Only – Packaged Individually

Uses Factory Coil Springs Struts

Ball Joints, Urethane Bushings Twin-Tube Pivot Sleeves Pre-Installed

---

If you’re building a lowered Ford F-150 and want a clean, aggressive stance without sacrificing ride quality, alignment integrity, or long-term reliability, the 2009–2013 Ford F-150 3 Inch Lowering Control Arm (Driver Side) is the proper way to do it.

Unlike shortcut methods that rely on cutting factory coils or using questionable drop spindles, this precision-engineered lowering control arm delivers a true 3-inch front drop while retaining your factory coil springs and struts. The result is a controlled, predictable suspension geometry that preserves factory ride comfort, eliminates clearance issues, and maintains correct ball-joint angles and alignment specs.

Designed specifically for 2009–2013 Ford F-150 trucks (2WD and 4WD), this driver-side control arm is a direct bolt-in replacement that installs cleanly and provides OEM-like durability with performance-grade upgrades built in.

Important Note:

• Driver Side Only

• Sold Individually

• Passenger-side control arm sold separately – CLICK HERE for Passenger Side Lowering Control Arm

---

Vehicle Fitment

Fits:

• 2009-2013 Ford F-150

Drivetrain Compatibility:

• 2WD

• 4WD

Position:

• Driver Side Only

Drop Height:

• 3 Inches Front

---

Why Proper Lowering Control Arms Matter

Lowering a modern F-150 isn’t just about aesthetics. The front suspension geometry on 2009–2013 trucks is highly sensitive to control arm angle, ball-joint positioning, and camber curve.

When you lower the front of your truck using only shorter springs or coilovers without correcting control arm geometry, several problems occur:

• Excessive negative camber

• Poor caster recovery

• Increased ball-joint stress

• Accelerated tire wear

• Reduced suspension travel

• Harsh ride quality

• Clearance problems with wheels and tires

This is exactly why properly designed lowering control arms are essential for any serious street-driven lowered F-150.

---

Engineered for a True 3-Inch Front Drop

This driver-side lowering control arm is engineered to relocate the ball-joint pivot point and suspension pickup geometry so that your F-150 sits exactly 3 inches lower in the front—without disturbing factory suspension travel or alignment range.

• Maintains proper camber curve

• Preserves caster angle

• Keeps ball-joint angles in a safe operating range

• Restores factory-like alignment adjustability

• Prevents tire-to-fender interference

• Eliminates strut and spring binding

The result is a lowered truck that drives straight, tracks cleanly at highway speeds, and corners predictably without darting or pulling.

---

Retains Factory Coil Springs and Struts

One of the biggest advantages of this 3-inch lowering control arm is that it retains your factory coil springs and struts.

That means:

• Factory ride comfort is preserved

• No harsh spring rates

• No coil binding

• No bottoming out

• No loss of shock travel

• No excessive NVH (noise, vibration, harshness)

This makes the setup ideal for daily-driven F-150s, long-distance road trips, and trucks that still see real-world use beyond show duty.

---

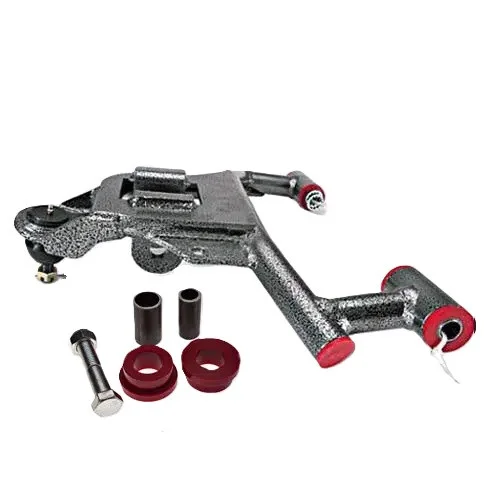

Pre-Installed Performance Components

To simplify installation and guarantee long-term reliability, each driver-side control arm ships fully assembled with premium components already installed.

Heavy-Duty Ball Joint (Pre-Installed)

Engineered to handle altered suspension angles while maintaining smooth articulation and long service life.

Performance Urethane Bushings (Pre-Installed)

Delivers tighter steering response, reduced deflection under braking and cornering, and improved durability compared to factory rubber bushings.

Twin-Tube Pivot Sleeves (Pre-Installed)

Prevents bushing distortion, ensures proper torque retention, and provides a stable pivot point under load.

This means no pressing bushings, no specialty tools, and no additional parts required.

---

Direct Bolt-On Installation

This control arm is designed as a direct OEM-style replacement for the factory driver-side arm.

• Bolts into factory mounting locations

• No cutting or welding

• No drilling

• No frame modifications

• Compatible with factory struts and springs

• Works with common 3-inch rear drop setups

• Accepts standard alignment procedures

Once installed, your truck can be aligned using factory cam bolts and adjustment points.

---

Perfect for 2WD and 4WD F-150s

Unlike many lowering solutions that only work on 2WD trucks, this control arm is engineered to work on both 2WD and 4WD F-150s.

That makes it a versatile solution whether you’re building:

• A slammed street truck

• A mild daily-driver drop

• A show-quality F-150

• A sport-handling street build

---

Eliminates Clearance Issues

Factory control arms weren’t designed to operate at lowered ride heights. When lowered improperly, the stock arms often contact:

• The frame

• The strut body

• The coil spring

• The wheel or tire

• The sway bar

This 3-inch lowering control arm eliminates those interference points by repositioning the ball-joint and pivot geometry correctly.

• No metal-to-metal contact

• No spring rub

• No strut interference

• No tire scuffing

• No binding during compression

---

Built for Strength, Durability, and Daily Use

This control arm isn’t just about looks—it’s built to survive daily driving, potholes, hard braking, and spirited cornering.

• Heavy-gauge steel construction

• Reinforced stress points

• Precision-welded seams

• Corrosion-resistant coating

• High-strength ball-joint housing

• Oversized pivot sleeves

It’s designed to meet or exceed OEM durability while providing corrected geometry for a lowered ride height.

---

Ideal Pairing Recommendations

Because this listing is for the driver side only, you will need the matching passenger-side 3-inch lowering control arm to complete the front suspension.

For a balanced stance, we recommend pairing this front setup with one of the following rear drop options:

• 3″ rear lowering shackles

• 4″ rear lowering shackles

• 3″ or 5″ rear hanger shackle kits

• 4″ or 6″ rear flip kits (depending on stance goals)

---

Product Specifications

• Application: 2009–2013 Ford F-150

• Position: Driver Side

• Drop: 3 Inches

• Drivetrain: 2WD 4WD

• Material: Heavy-Duty Steel

• Finish: Corrosion-Resistant Coating

• Ball Joint: Included Pre-Installed

• Bushings: Urethane (Pre-Installed)

• Pivot Sleeves: Twin-Tube (Pre-Installed)

• Installation: Direct Bolt-On

• Packaging: Sold Individually

---

Benefits at a Glance

True 3-inch front drop

Maintains factory alignment geometry

Preserves ride quality

Retains factory coil springs and struts

Eliminates clearance issues

Improves steering response

Reduces tire wear

Pre-assembled for easy install

Works on 2WD and 4WD trucks

Direct bolt-on replacement

---

Who This Control Arm Is Perfect For

This product is ideal for:

• F-150 owners who want a clean lowered stance

• Daily-driven street trucks

• Show trucks

• Performance-oriented builds

• Trucks running larger wheels

• Owners tired of tire wear from bad geometry

• Anyone seeking OEM-like reliability after lowering

---

Installation Notes Alignment Recommendation

Professional installation is recommended but not required. Any competent shop familiar with front suspension work can install this control arm using standard tools.

1. Install both driver and passenger side control arms

2. Torque all hardware to factory specs

3. Verify bushing preload with suspension at ride height

4. Perform a full four-wheel alignment

Alignment is mandatory after installation to ensure proper tire wear and steering response.

---

Why Buy from Gauge-Store?

At Gauge-Store, we specialize in suspension systems that are proven to work in the real world. Every product we carry is selected based on:

• Build quality

• Engineering integrity

• Real-world fitment

• Ride quality

• Long-term durability

We don’t sell gimmicks. We sell suspension components that perform, last, and deliver the stance your truck deserves.

---

Final Thoughts

The 2009–2013 Ford F-150 3 Inch Lowering Control Arm (Driver Side) is the correct way to lower the front of your truck without destroying ride quality, alignment, or component life.

If you want:

• A true 3-inch drop

• Factory-like ride comfort

• Proper suspension geometry

• Long-term reliability

• Clean wheel fitment

• Zero clearance issues

—this control arm delivers exactly that.

Pair it with the matching passenger-side arm and a quality rear drop setup, and your F-150 will sit right, drive right, and turn heads everywhere you go.
