Description

The Ultimate Steering Solution for your Superduty Axle Swap Premium Front Axle Aluminum Steering Kit for your Jeep

For the Past 5 Years, we’ve been testing 7075 Aluminum Steering in the ARTECON to ensure that they could handle the abuse of both extreme, heavy duty rock crawling and normal daily driving.

We’ve been pleased with how they’ve handled the rigorous abuse and how much weight is saved by using is compared to standard steel tubing. This is the exact steering used in our Gladiator on Superduty axles.

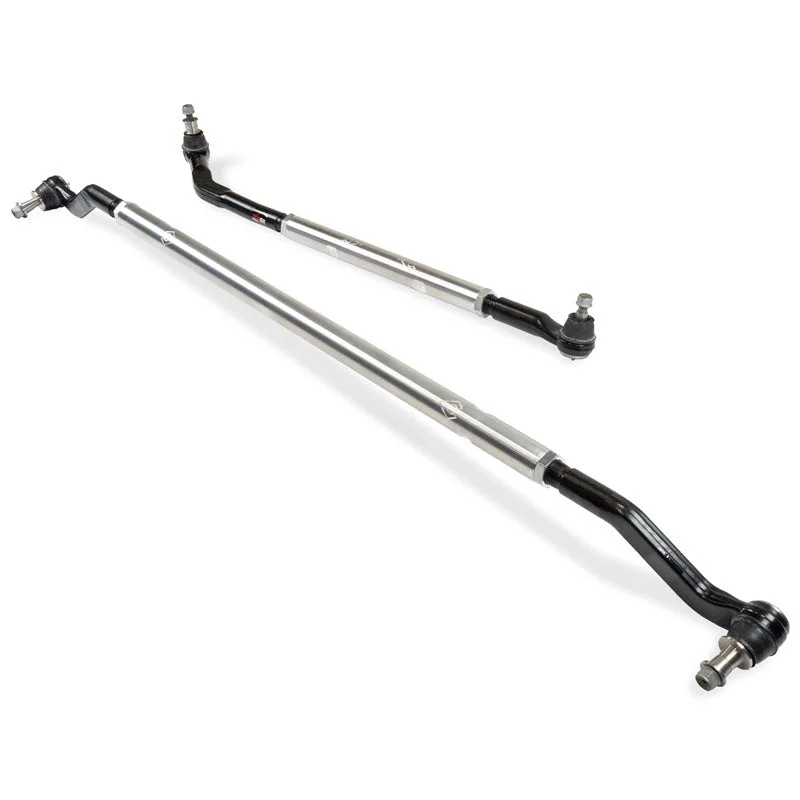

The Superduty Swap Aluminum Steering Kit starts with our 1.75 inch Outer Diameter, Aerospace grade 7075 Aluminum rods. These are mated with Made In Amercia Premium Tie Rod Ends designed after those in the Ford F-450 and are the beefiest and longest lasting in the industry.

Seriously, The Biggest Tie Rod Ends We’Ve Ever Seen.

The tie rod and drag link ends are offset to account for the short arms on the superduty knuckles but give you great steering feel and no contact with the differential. These are coupled with stainless steel spacers and adapters to allow you to fit it exactly to your new axle.

Each link is threaded with both a Right Hand thread and a Left Hand thread at opposite ends so it is easy to adjust the length alignment. We’ve also included wrench flats on each end of the aluminum link so you can easily tighten your jam nuts without marring the aluminum.

Simply choose which vehicle: Jeep JL/JT or a JK. The only difference is the drag link end at the pitman arm.

From there, you can add on additional components such as high steer arms and Reid knuckles so you can attach the steering to the vehicle if you haven’t already purchased them previously.

These components are all offered separately as an add-on item since many have either already purchased some of these items. If you need everything, just click the check boxes next to the appropriate accessories.

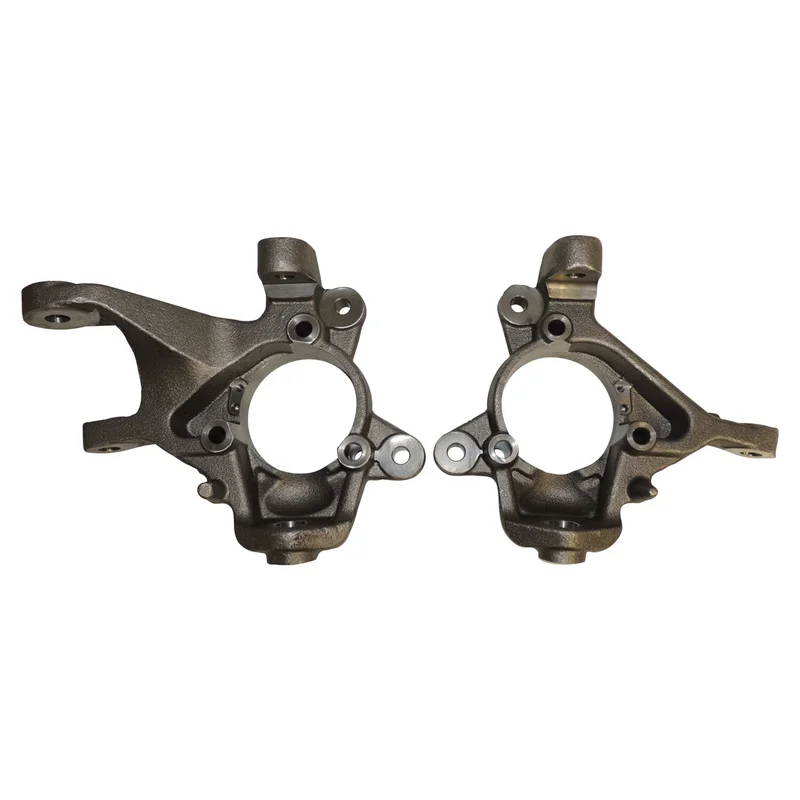

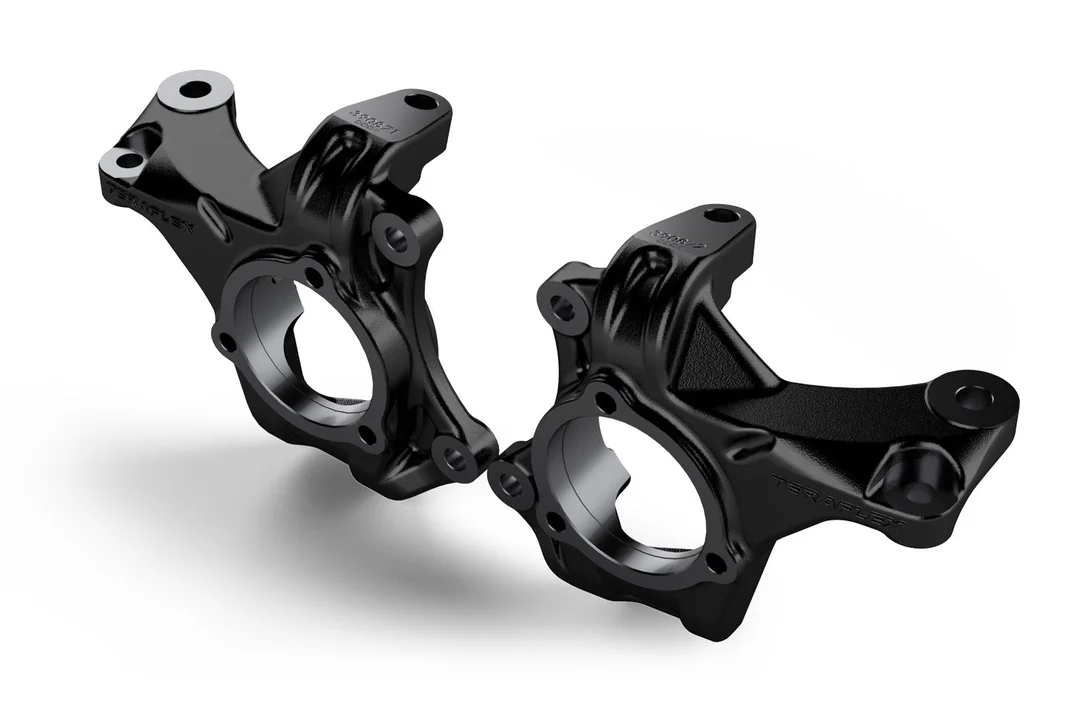

You will need the passenger side Reid Racing knuckle, Artec Aluminum Superduty High Steer Arm with studs and the Artec Superduty High Steer Spacer to bolt this kit directly into a vehicle.

Note: The Passenger Side Knuckle Must Be A Reid Racing Knuckle For Superduty 2005+ With The Machined Surface For Mounting A High Steer Arm. No Other Superduty Knuckle Will Work

Included in the kit:

• 1 – RH Tie Rod End 1.25 inch Thread
• 1 – LH Tie Rod End 1.25 inch Thread
• 1 – RH Drag Link End 1.25 inch Thread (pitman arm side, JL or JK taper)
• 1 – LH Drag Link End 1.25 inch Thread (knuckle side)
• 2 – RH 1.25 inch -12 tpi Jam Nuts
• 2 – LH 1.25 inch -12 tpi Jam Nuts
• 1 – 1.75 inch OD 7075-T6 Aluminum Tie Rod Bar
• 1 – 1.75 inch OD 7075-T6 Aluminum Drag Link Bar
• 6 – Stainless Steel Spacers/washers to adapt to the Superduty knuckles and high steer arm

Specifications:

Sold As	Kit
UPC	810039900468
Availability	Available
Universal	No

This Part Fits:

Year	Make	Model	Submodel	Notes
2007	Jeep	Wrangler	X
2008	Jeep	Wrangler	X
2009	Jeep	Wrangler	X
2010	Jeep	Wrangler	X
2007	Jeep	Wrangler	Rubicon
2008	Jeep	Wrangler	Rubicon
2009	Jeep	Wrangler	Rubicon
2010	Jeep	Wrangler	Rubicon
2011	Jeep	Wrangler	Rubicon
2012	Jeep	Wrangler	Rubicon
2013	Jeep	Wrangler	Rubicon
2014	Jeep	Wrangler	Rubicon
2015	Jeep	Wrangler	Rubicon
2016	Jeep	Wrangler	Rubicon
2017	Jeep	Wrangler	Rubicon
2007	Jeep	Wrangler	Unlimited X
2008	Jeep	Wrangler	Unlimited X
2009	Jeep	Wrangler	Unlimited X
2010	Jeep	Wrangler	Unlimited X
2007	Jeep	Wrangler	Sahara
2008	Jeep	Wrangler	Sahara
2009	Jeep	Wrangler	Sahara
2010	Jeep	Wrangler	Sahara
2011	Jeep	Wrangler	Sahara
2012	Jeep	Wrangler	Sahara
2013	Jeep	Wrangler	Sahara
2014	Jeep	Wrangler	Sahara
2015	Jeep	Wrangler	Sahara
2016	Jeep	Wrangler	Sahara
2017	Jeep	Wrangler	Sahara
2007	Jeep	Wrangler	Unlimited Sahara
2008	Jeep	Wrangler	Unlimited Sahara
2009	Jeep	Wrangler	Unlimited Sahara
2010	Jeep	Wrangler	Unlimited Sahara
2011	Jeep	Wrangler	Unlimited Sahara
2012	Jeep	Wrangler	Unlimited Sahara
2013	Jeep	Wrangler	Unlimited Sahara
2014	Jeep	Wrangler	Unlimited Sahara
2015	Jeep	Wrangler	Unlimited Sahara
2016	Jeep	Wrangler	Unlimited Sahara
2017	Jeep	Wrangler	Unlimited Sahara
2007	Jeep	Wrangler	Unlimited Rubicon
2008	Jeep	Wrangler	Unlimited Rubicon
2009	Jeep	Wrangler	Unlimited Rubicon
2010	Jeep	Wrangler	Unlimited Rubicon
2011	Jeep	Wrangler	Unlimited Rubicon
2012	Jeep	Wrangler	Unlimited Rubicon
2013	Jeep	Wrangler	Unlimited Rubicon
2014	Jeep	Wrangler	Unlimited Rubicon
2015	Jeep	Wrangler	Unlimited Rubicon
2016	Jeep	Wrangler	Unlimited Rubicon
2017	Jeep	Wrangler	Unlimited Rubicon
2010	Jeep	Wrangler	Unlimited Sport
2011	Jeep	Wrangler	Unlimited Sport
2012	Jeep	Wrangler	Unlimited Sport
2013	Jeep	Wrangler	Unlimited Sport
2014	Jeep	Wrangler	Unlimited Sport
2015	Jeep	Wrangler	Unlimited Sport
2016	Jeep	Wrangler	Unlimited Sport
2017	Jeep	Wrangler	Unlimited Sport
2010	Jeep	Wrangler	Sport
2011	Jeep	Wrangler	Sport
2012	Jeep	Wrangler	Sport
2013	Jeep	Wrangler	Sport
2014	Jeep	Wrangler	Sport
2015	Jeep	Wrangler	Sport
2016	Jeep	Wrangler	Sport
2017	Jeep	Wrangler	Sport
2011	Jeep	Wrangler	Unlimited 70th Anniversary
2011	Jeep	Wrangler	70th Anniversary
2016	Jeep	Wrangler	75th Anniversary
2016	Jeep	Wrangler	Sport S
2016	Jeep	Wrangler	Unlimited Sport S
2016	Jeep	Wrangler	Unlimited 75th Anniversary
2018	Jeep	Wrangler JK	Sport S
2018	Jeep	Wrangler JK	Unlimited Rubicon
2018	Jeep	Wrangler JK	Sport
2018	Jeep	Wrangler JK	Unlimited Sahara
2018	Jeep	Wrangler JK	Sahara
2018	Jeep	Wrangler JK	Unlimited Sport
2018	Jeep	Wrangler JK	Unlimited Sport S
2018	Jeep	Wrangler JK	Rubicon
